Sucker Rod & Pulling Units

StarTech Sucker Rod & Pulling Unit :No.(D-DE-001 )

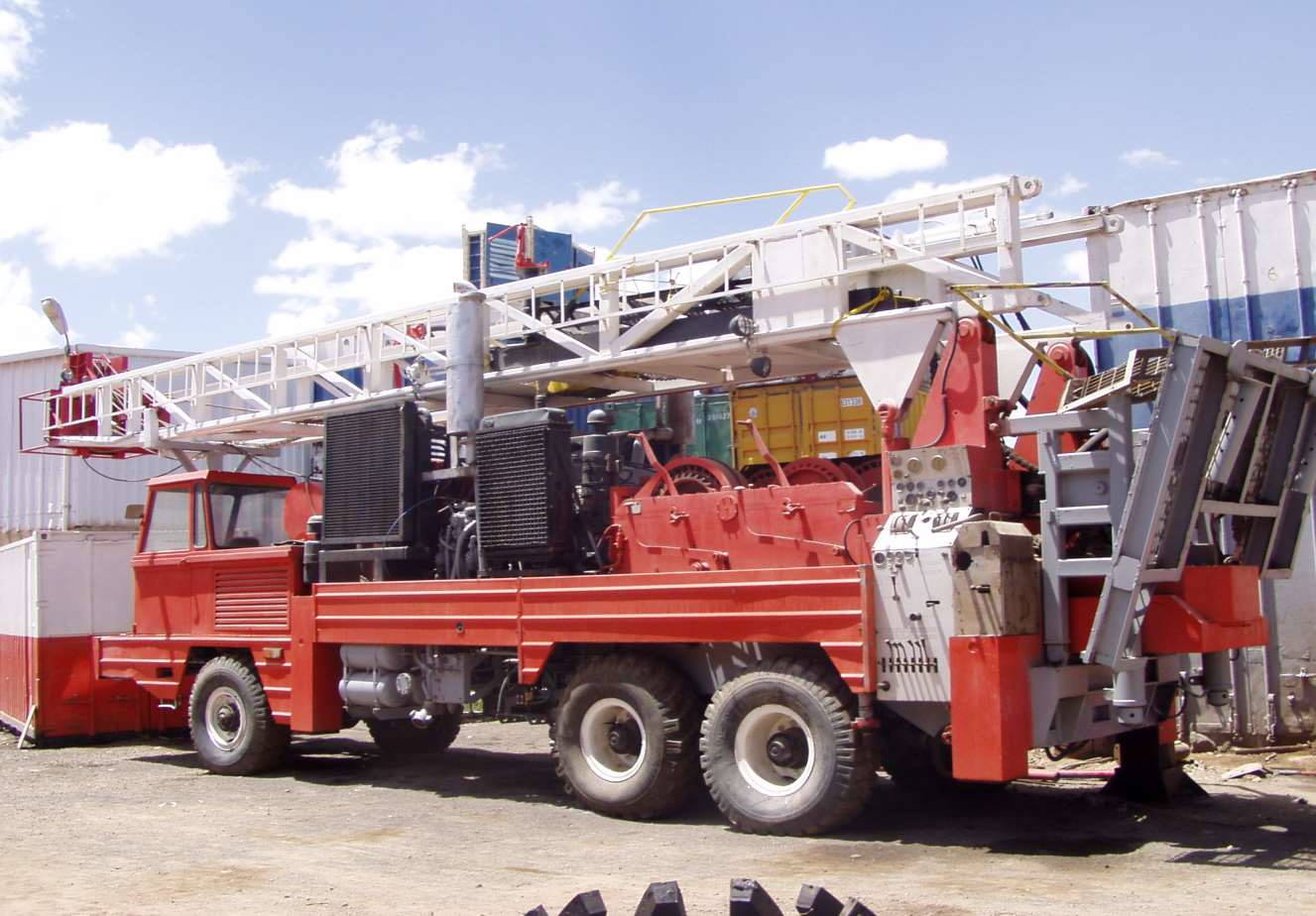

380 HP MENCARELLI Pulling Unit for Sucker Rod Jobs

StarTech Sucker Rod & Pulling Unit No. (D-DE-001): Mencarelli - Italian produced self-contained, self-propelled, and rapid moving unit utilized for sucker rod pulling and running operations, which can be used for shallow wells as well as well pump pulling.
This unit combines exceptional mobility, especially in dry locations and boulder-strewn valleys, with a depth capacity of up to 2000 meters.

Racking board will allow the crew to rack back on derrick sucker rod joints; the procedure will be faster than laying down sucker rods on racks.

Associated Handling Tools and BOP's: The following items will be included in the unit:
- Sucker Rod Power and Manual Tongs.
- Elevators for sucker rods of all diameters.
- Sucker rod BOPs with variable Ram size.

Small pump mounted: will be used for filling the well and perform function and If necessary, perform a pressure test.

Features

• • Two Diesel Engines for more reliable hydraulic power to rig components.
• • 6 x 6 carriers with independent V-8 Deutz diesel Engine.
• • Quick rig up at site with two hydraulically operated masts rams.
• • Double Drum Draw work.
• • Two Hook Blocks: One main and one auxiliary hook blocks.
• • Two Sucker Rod Racking Boards.
• • Rebuilt in 2012.

Engine Specifications:

• • Working Horsepower:
• • Engine # 1 V8, 380 HP @ 2300 RPM
• • Engine # 2 V6, 263 HP @ 2300 RPM
