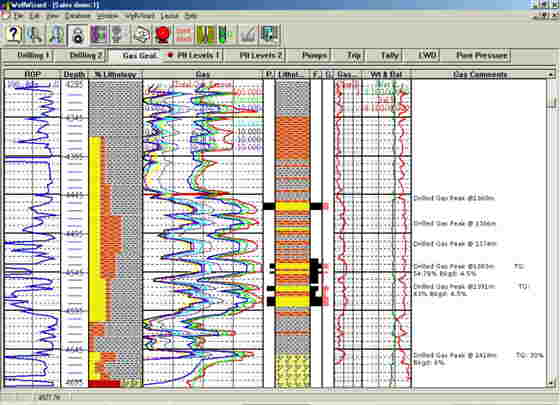

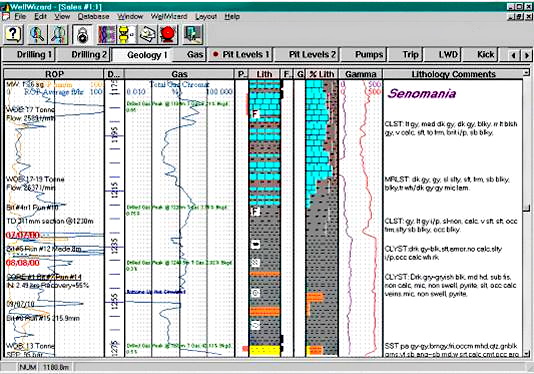

WELLWIZARD FEATURES


Multiple wells in RT or previous data offsets can be viewed. Each user can customize their own screen displays, unit preferences, track layouts, scales, and so on. Events Library for storing and viewing data files, spreadsheets, word documents, and other documents organized by depth or time. All DD, MWD, LWD, LWT, and Wireline data TVD log graphing can be reported and seen. All numerical data (LAS, ASCII, WITS, etc.) can be imported and exported.

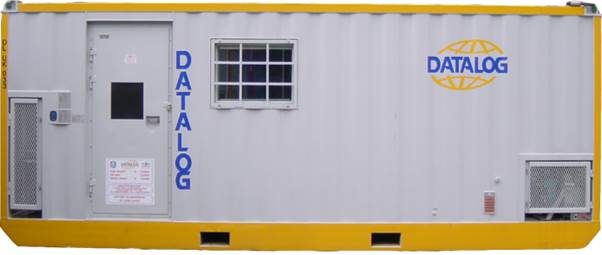

Mud Logging Unit

DNV designs, builds, and independently certifies Datalog cabins to fulfill this stringent safety requirement.
Quality Output
We develop our own talent. Mud logging necessitates specialized skill sets, therefore we equip our specialists with competency-based training to supplement their field expertise. As a result, you will have access to a global team of highly qualified mudlogging specialists.

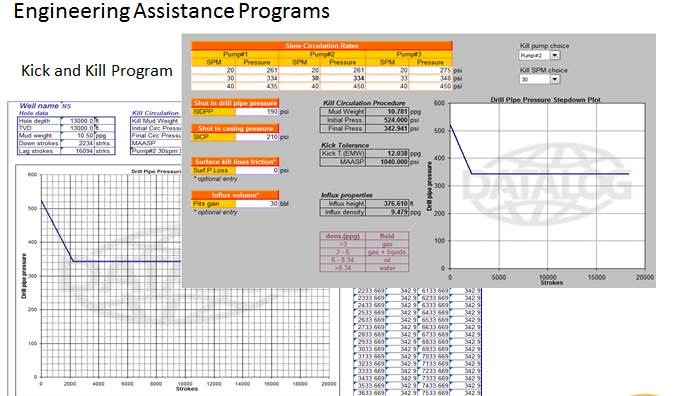

Advanced Kick Detection

imageportofolio

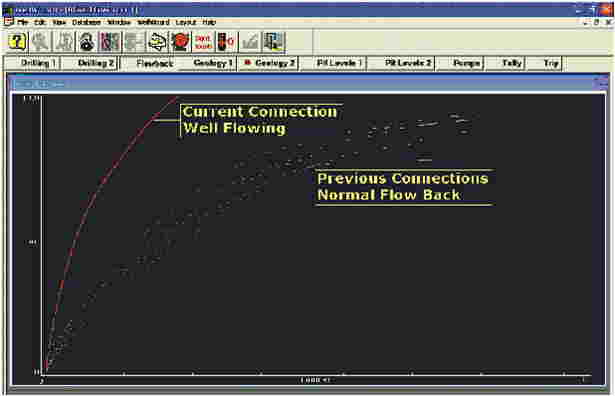

Flow Back Monitoring
Identifying kicks by analyzing connection "flow back" trends. Every connection mud flows back to pits, traditional kick detection is nearly blind due to increased pit volume and absence of flow, and a fall in ECD while pumps are off increases the likelihood of a kick. Drillers or Mud Loggers can readily detect any variation from "normal" fluid flow because software automatically plots it at each connection.







High Speed Gas Chromatography

  • Default C1, C2, C3, IC4, NC4, IC5, NC5 & C02 (others possible), sampled & analyzed every 30 seconds (or less).
  • Non-flammable Helium reference gas (safety consideration, particular in offshore work).
  • Columns with independent solid state injection, analytical & reference column, thermal conductivity detector.
  • Excellent separation of all gases.


Gas Ratio Analysis

  • The ANAX 500 system provides several gas ratio analysis methods processing data from the high speed chromatograph.
  • RT wetness, balance and character ratios indicate the hydrocarbon type specified as its grade (heavy oil, medium, light, condensate gas, light gas).
  • Individual plots of specified zones generate Pixler Plots to characterize productive or non-productive oil or gas, with relative permeability.
  • The users may define their own hydrocarbon ratios (or ratios from any other parameter calculated by the ANAX 500 system.
  • Standard hydrocarbon gas ratios are used to determine oil/gas/water contacts.

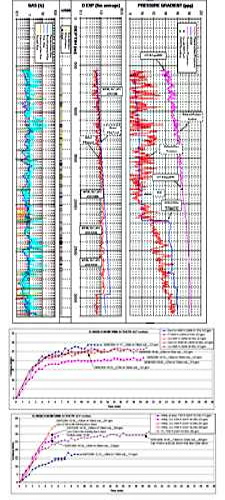

Formation Pressure Evaluation


The cornerstone for formation pressure evaluation analysis is qualitative methodologies. Parameters monitored include:
  • Dxc (the primary measurement)
  • Gas relationships (background gas,
  • Connection and trip gases, ECD, MW)
  • Drilling Fluid Temperature.
  • Drilling Fluid Conductivity.
  • Rotary Torque, Fill, Overpull.
  • Cuttings character;
  • Cavings, Shape and volume.
  • Analysis of formation pressures in shaly sequences qualifying under-compaction disequilibrium.
